Loop node

The Loop node iterates over data or repeats actions. It appears in the Loops palette category with the description: “Iterate over data or repeat actions.”

When to use

Process each item in an array (e.g., iterate over query results)
Repeat an action until a condition is met
Execute a block of nodes a fixed number of times

Configuration

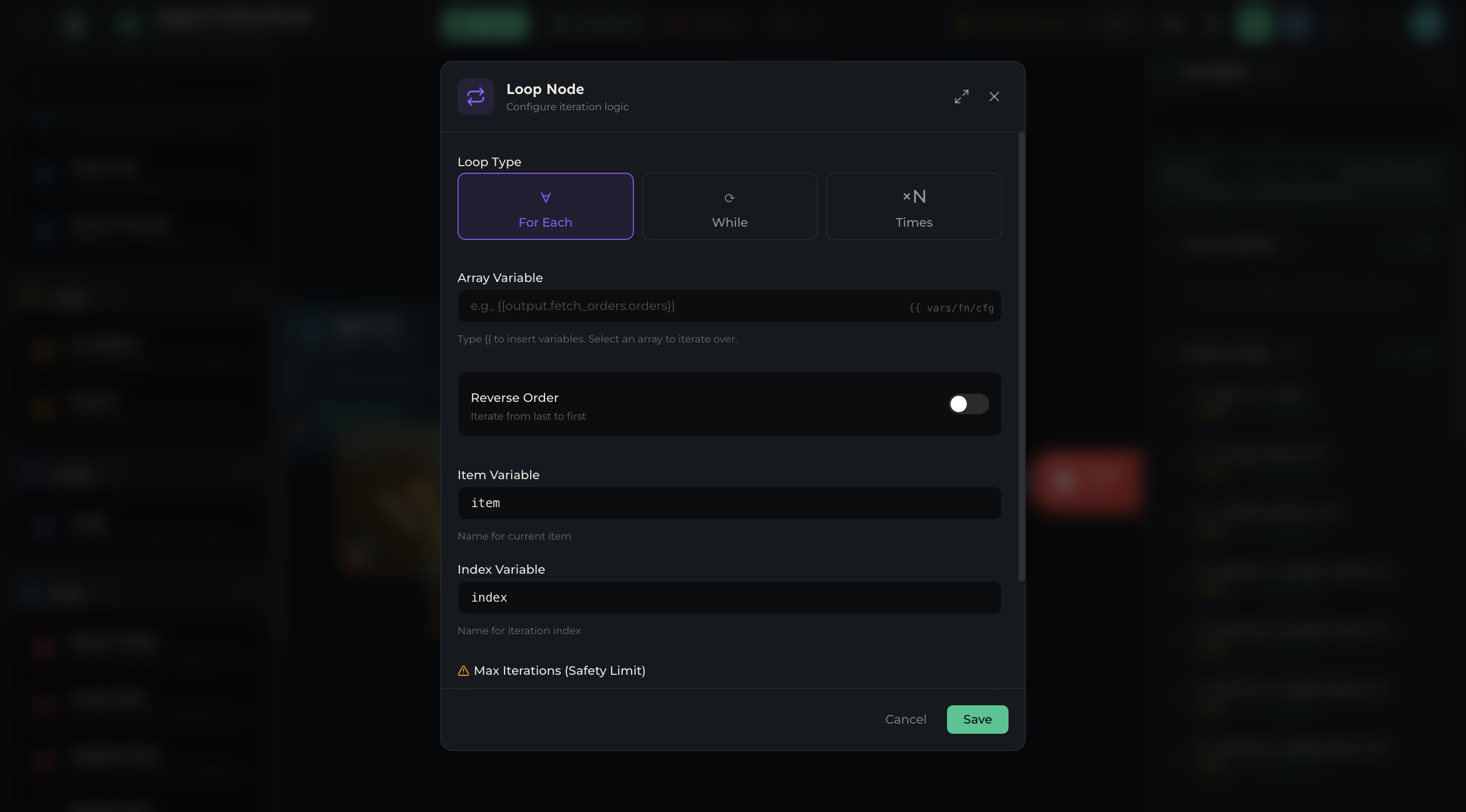

Click the Loop node to open its configuration panel.

Loop Type

Three loop modes, selected via toggle buttons:

Mode	Icon	Description
For Each	∀	Iterate over each item in an array
While	⟳	Repeat while a condition is true
Times	×N	Repeat a fixed number of times

For Each settings

Setting	Type	Description
Array Variable	Text field (supports `{{variable}}` placeholder)	The array to iterate over
Reverse Order	Toggle	Process items from last to first
Item Variable	Text field (default: `item`)	Name for the current item in each iteration
Index Variable	Text field (default: `index`)	Name for the current index (0-based)
Max Iterations	Number input (default: `100`)	Safety limit to prevent infinite loops

Advanced Options

Expandable section with additional controls for concurrency and error handling.

Edge significance

The Loop node has two output edges:

Loop Body → connects to the nodes that execute on each iteration
Done → connects to the node that runs after all iterations complete

💡

Connect the last node in your loop body back to the Loop node to create the iteration cycle. The “Done” edge fires when all iterations are complete.

Output

Variable	Description
`item`	Current item in the iteration (For Each mode)
`index`	Current iteration index
Loop results	Aggregated results from all iterations

Common patterns

Process query results — Connect a Query Table node → Loop (For Each over {{query_result.rows}}) → processing nodes.
Retry with backoff — Use a While loop with a condition checking success status.
Batch processing — Use Times loop with calculated batch count.
